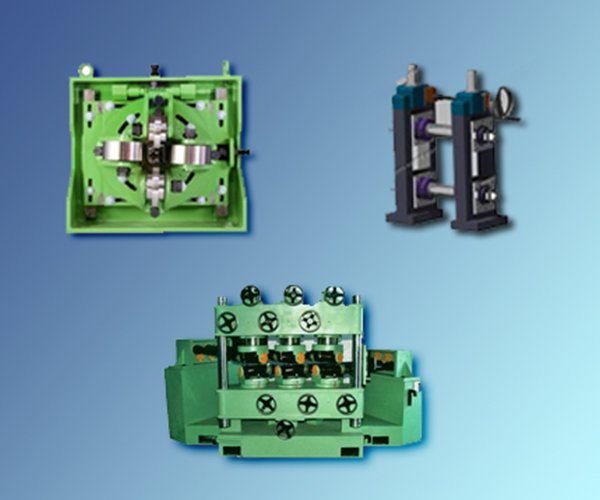

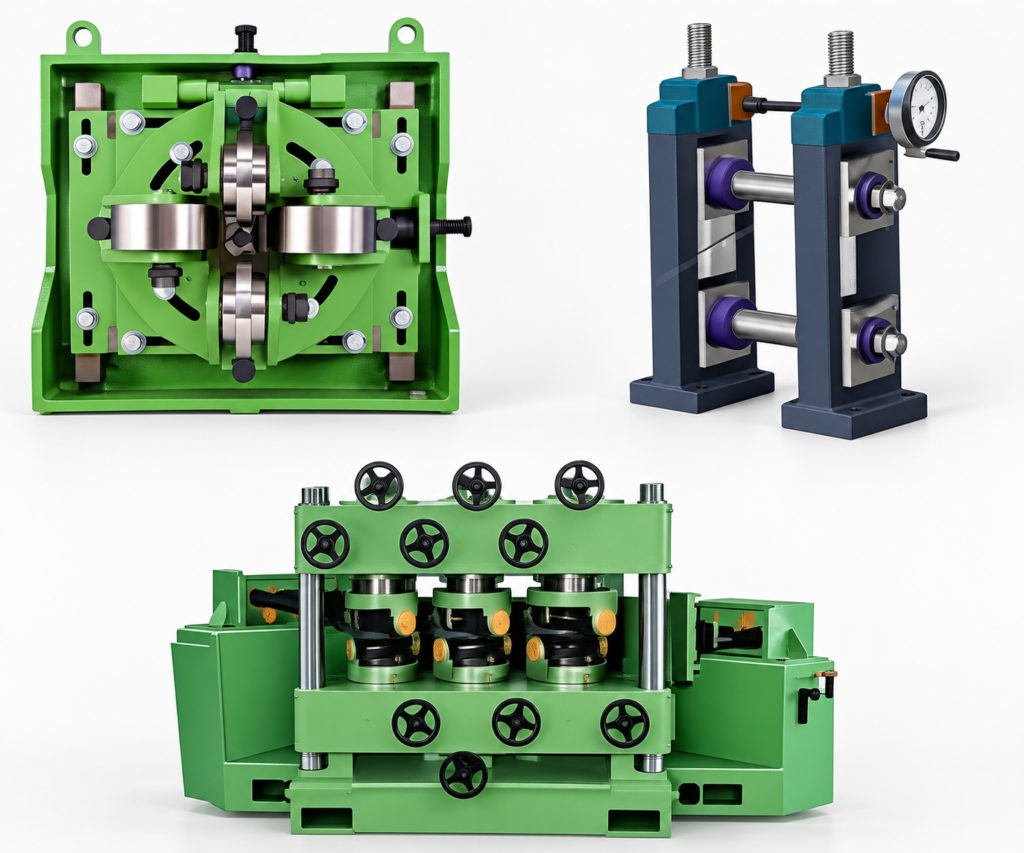

We are manufacturing / supplying all accessories & parts of tube mill plant like slide, turk head, Stands, COC, Turk Head Assembly, Tube Mill Stand, Pipe Straighter Machine ETC.

• Entry Guide Unit: The Entry Guide Unit accurately guides the strip
  into the forming section of the tube mill.
• Pipe Conveyor: Transports pipes between dierent stages
  of production
• Side Guide Unit: Used after the forming section to maintain strip
  alignment before welding.
• Roll Stand: Supports forming, sizing, and finishing rolls
  during pipe manufacturing.
• Strip Edge Milling Unit: Removes burrs and prepares strip edges before
  welding for high-quality weld seams.
• Tube Mill Rolls: Specially designed rolls used for forming flat
  steel strips into round, square, or rectangular tubes.
• Strip Accumulator: Stores steel strip temporarily, allowing
  continuous tube production during coil joining.
• Roll Spacer: Maintains accurate spacing between tube
  mill rolls.
• High Frequency Welding Unit: Produces high-frequency electrical energy for
  welding strip edges into tubes.
• Roll Shaft: Supports rolls and transmits torque from
  the drive system.
• Impeder: A magnetic component installed inside the pipe
  during HF welding to concentrate the magnetic
  field and improve weld eciency
• Universal Joint Spindle: Transmits rotational power between the
  gearbox and roll shafts
• Squeeze Roll Assembly: Applies pressure to the heated strip edges during
  welding to form a strong weld.
• Drive Gearbox: Delivers synchronized power to the roll stands.
• Coil Car: Transports steel coils to the uncoiler
  for loading.
• Weld Bead Scarfing Unit
  : Removes internal and external weld beads
  after welding.
• Uncoiler, (Decoiler):Holds and unwinds steel coils to feed the
  strip into the tube mill.
• Cooling System: Cools welded tubes immediately after welding.
• Shear & End Welder: Cuts strip ends and welds consecutive coils
  together to maintain continuous production.
• Turk’s Head Unit: Straightens and sizes the welded tube before
  cutting.
• Straightening Machine
  : Corrects the straightness of finished tubes
  after production.
• Flying Cut-O Machine: Cuts continuously moving tubes into required
  lengths without stopping the production line.
• Hydrostatic Testing Machine: Tests the pressure resistance and leak-tightness
  of finished pipes using water pressure.
• Run-Out Table: Transfers finished pipes from the cut-o machine
  for inspection and collection.
• Pipe End Facing & Chamfering Machine
  : Machines the pipe ends to produce a smooth
  face and chamfer for welding or assembly.
• Pipe Stacker: Automatically collects and stacks finished pipes.
• Pipe Bend Testing Machine: Tests the bendability and ductility of pipes by
  bending them to specified angles without failure.
